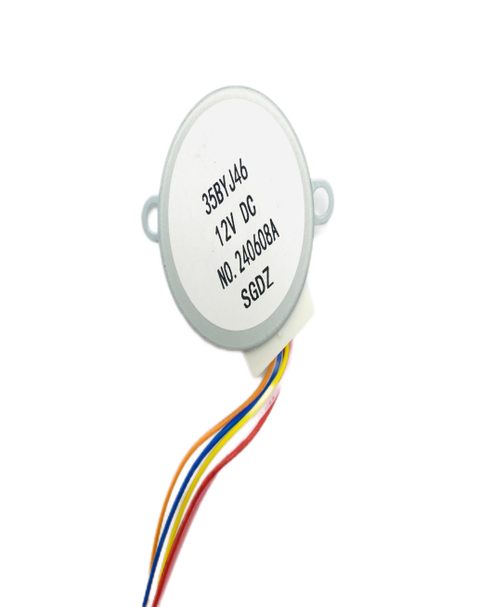

Stepper Motor, Small Reduction, 12V
Stepper motor is a common type of motor, and its advantages and scope of application are as follows:
Advantages:
1. High precision: the motion accuracy of the stepper motor is very high, and small step motion can be achieved.
2. Good controllability: the movement of the stepper motor can be accurately controlled according to the control signal, so that its movement direction and speed can be programmed.
3. High efficiency: The efficiency of the stepper motor is very high, and it can complete a lot of work in a short time.
4. Accurate stop position: When stopping motion, the stepper motor can accurately stop at the specified position without sliding or offset.
Scope of application
1. Automatic control system: Due to the high precision and programmability of the stepper motor, it is often used in automatic control systems, such as CNC machine tools, automatic production lines, etc.
2. Electronic equipment: Stepper motors are widely used in electronic equipment, such as printers, scanners, set-top boxes, etc.
3. Instrumentation: Stepper motors also have great applications in the field of instrumentation, such as spectrometers, image processing equipment, medical diagnostic equipment, etc.
4. Mechanical equipment: Stepper motor can also be used in mechanical equipment, such as CNC machine tools, cutting machines, stirrers,Precision instruments, industrial control systems, office automation, etc.
In short, the stepper motor has the advantages of high precision, programmable, high efficiency and accurate stop position, which is suitable for automatic control systems, electronic equipment, instruments and mechanical equipment and other fields.
Specification
|
COMMON RATINGS & SPECFICATIONS |
|
|
Number Of Phase |
4 |
|
Basic Step Angle |
7.5°/130 |
| Reduction ratio | 1:130 |
| Rated voltage(phase) | 12V(DC) |
| Resistance(Phase)at25℃ | 130Ω10% |
| (200pps)/Pull in torque | >147mN.m |
| Cogging torque | >98mN. m |
| Noise | <40dB |
| No load pull in frequency | >500Hz |
| No load pull out frequency | >800Hz |
| Dielectric Strength | 600V A.C |
| (DC500V)/Insulation Resistance | 100MΩ/Min |
| (UL)/Insulation Class(UL) | E |
| Temperature Rise | 50K/Max |
| Friction Torque | 294~588mN.m |
| Storage Ambient Temperature | -5℃~+35℃ |
| Storage Ambient Humidity | <75%RH |
Other information
•Certificates, awards and process.
•Sample: standard motor size such as picture, the unique requirements, Please provide the necessary axis, bearings, rotation speed, rotation, torque and uses.
•Also provide special rotation speed and high-strength torque, please contact our business department.
•The bearing has three kinds of size, and has special bronze bearing, roller bearings, and so on.
Established in 2004, Shenzhen Songgang has strong technical strength and rich industry experience, producing and selling products including permanent magnet DC motors, AC synchronous motors, hysteresis synchronous motors, stepper motors, brushless DC motors, worm gear motors, planetary gear motors.
Shenzhen Songgang is committed to providing customers with high quality motors and sincere service. We have passed ISO9002 international quality system certification, CE/EMC/ROHS environmental certification and obtained patents for high efficiency energy consumption.
Factory production line
Certificate
Packing & Shipping
1) Samples and bulk products by FedEx/DHL/UPS/TNT.
2) Air or sea freight for bulk shipments, for FCL airport port reception.
3) Customer appointed freight forwarder or negotiable shipping method!
4) 3-5 days for International Express, 30-35 days for Ocean Freight.
